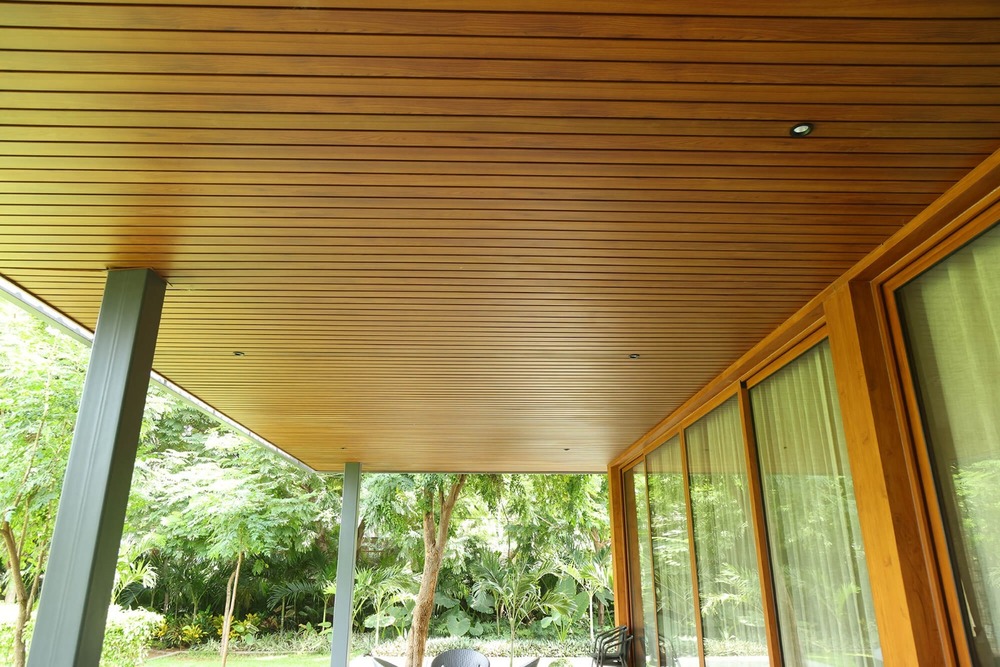

Linear panels, Cold Rolled

Product Description

• Panel Length: Standard panel lengths are typically 2m to 6m (custom lengths available)
• Panel Width:
  • 60mm to 300mm (varies depending on design)
• Profile Depth: 10mm to 40mm depending on the design (adjustable based on visual preference or structural requirements)

• Surface Finish Options: Smooth, textured, or perforated surfaces for aesthetic appeal or functional ventilation.
• Linear Profiles:
  • Horizontal or vertical orientation options available.
  • Consistent width and spacing between panels for clean lines (spacing can vary between 5mm to 20mm).
• Color Options: Wide range of colors including matte, gloss, metallic, or custom finishes depending on project needs.
• Timber-Look Option: Composite panels with a natural wood finish look.

• Fire Rating: Many linear cladding systems have fire-rated properties. For example:
  • Class 1 or A1 Fire Rating (depending on material choice)
• Weather Resistance: Resistant to corrosion, fading, and weathering for long-term durability.
• Impact Resistance: Ability to withstand light to moderate impact without denting or scratching, depending on the material.
• Sound Insulation: Certain systems offer enhanced acoustic properties to reduce noise penetration, particularly useful for commercial buildings.

• Some linear cladding panels come with integrated thermal insulation or can be installed with a backing that provides thermal resistance. Thermal resistance may vary depending on the material used:
  • Insulation Values: R-values ranging from 0.5 to 2.0 (depending on insulation material or composite structure)..

• Mounting System:
  • Concealed or exposed fastening options.
  • Quick-lock or clip-on systems for easy installation.
  • Option to install over a ventilated rain screen system for moisture management.
• Subframe Requirements: Typically installed over a metal or timber frame that ensures secure attachment and airflow behind the panels.
• Jointing: Hidden or flush joints, ensuring a seamless appearance.

• Recyclability: Most systems are made from recyclable materials (e.g., aluminum, steel, or composites).
• Low VOC: Systems made with low or zero volatile organic compound finishes and materials for eco-friendly applications.

• Cleaning: Generally requires light cleaning with water and a mild detergent to maintain appearance.
• Longevity: Designed for long-term durability with a 10-20+ year lifespan depending on exposure conditions and materials.
